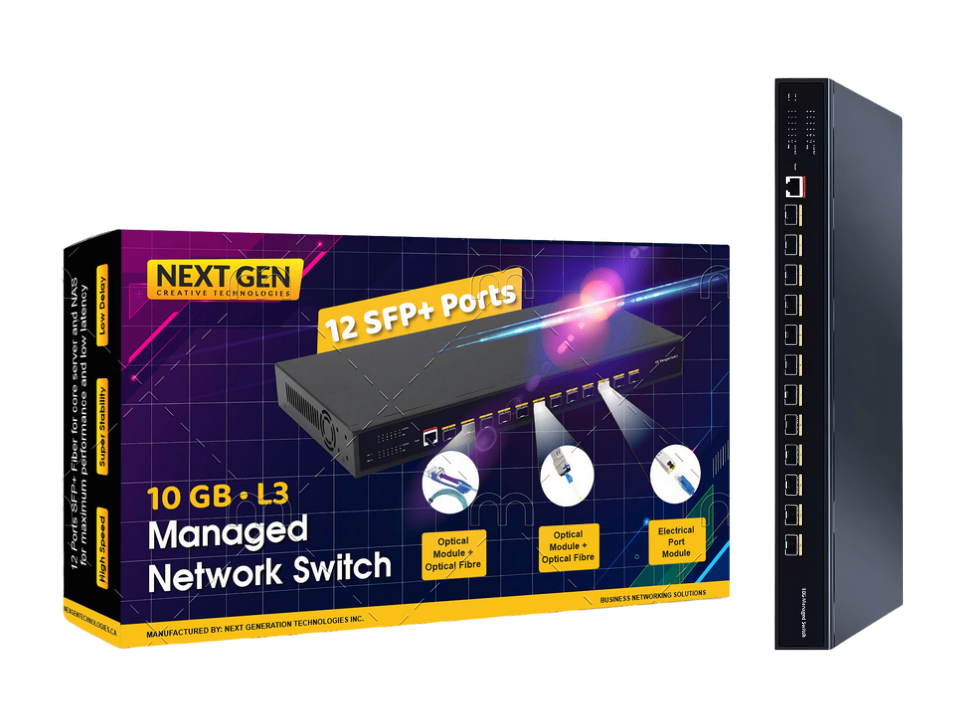

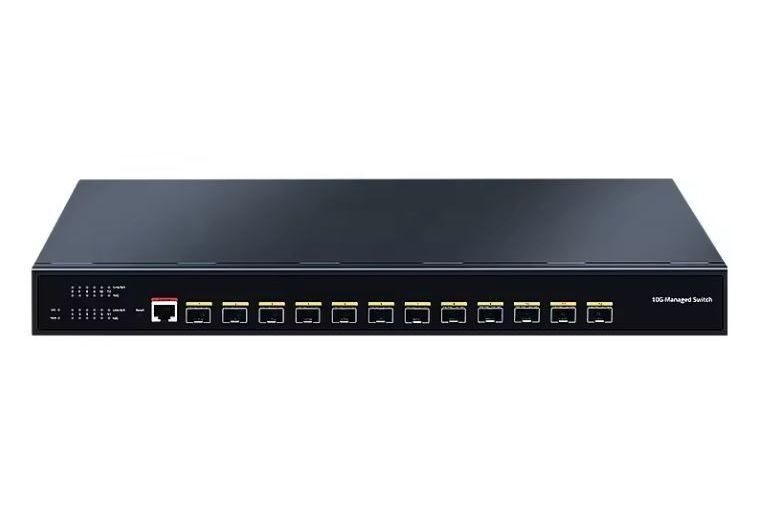

NEXT-GENERATION 10G Managed 12 Port Optical SFP+ L3 Network Switch

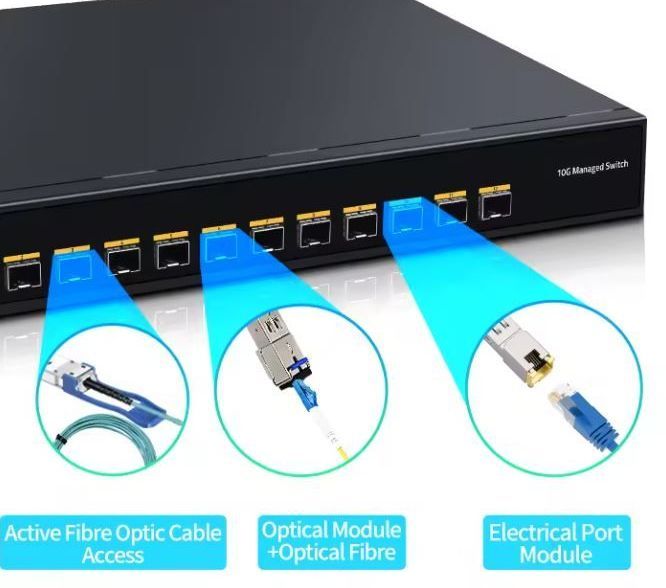

12 Port 10G L3 Management Ethernet Switch, support 12* SFP+ ports, 1* RJ45 console port. Perfect security control strategy and CPU protect policy, improve product fault tolerance, ensure stable network operation and link load balancing; the device supports automatic DoS attack prevention, SNMP, IEEE 802.1q, spanning tree, rapid generation tree protocol, link aggregation and other functions.

Advanced security features and advanced Quality of Service (QoS), can be used as a core, distribution or access layer switch, with high port density, easy to manage, it is an ideal choice for a variety of commercial network applications.

Main Features

1. Support IEEE 802.1d, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE802.3ab, IEEE 802.3ae standard;

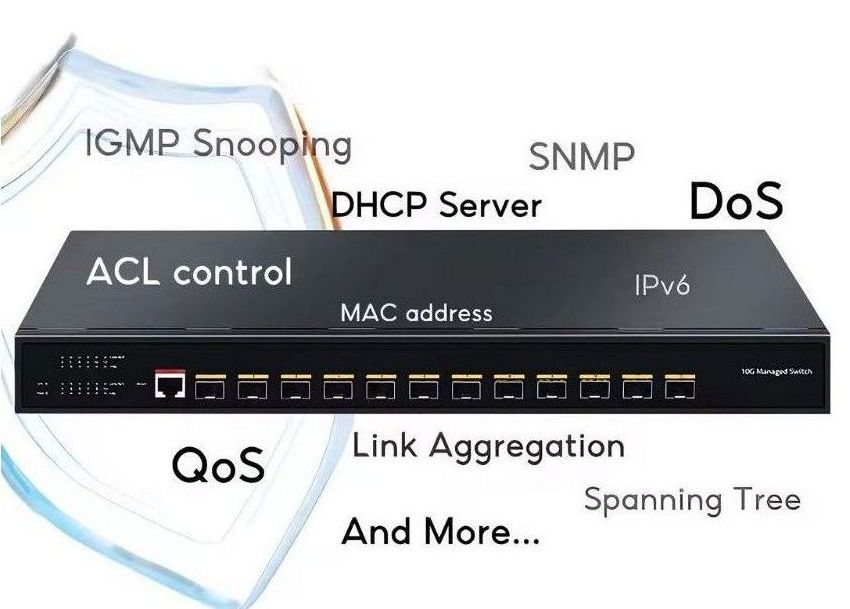

2. L3 Management, support DHCP Server, QoS, ACL control, support SNMP V1/V2/V3, IGMP Snooping v1/v2;
3. Support STP/RSTP/MSTP(ERPS), loop detection and self-healing, support remote loop back monitoring and control(802.3ah OAM);
4. Support multiple VLAN division, mac VLAN, Protocol VLAN, Private VLAN;
5. Support IP address + MAC address + VLAN+Port binding, DHCP Snooping, support IP source and DAI protection;
6. Support IPV4/IPV6.RIPv1/v2 OSPF

Drivers & Downloads

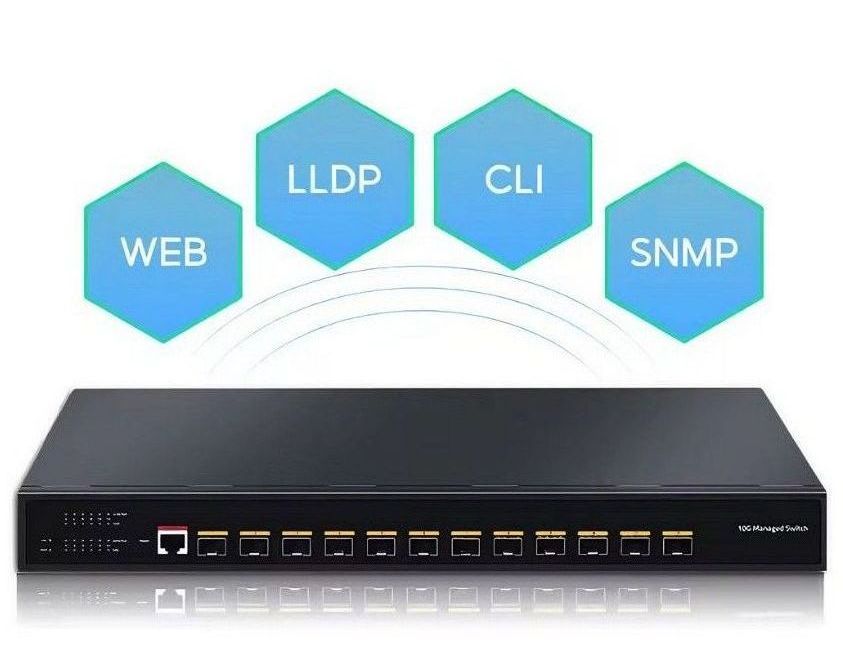

→ Switch updates are done from web console.

Package Includes:

• Switch: 1 Set
• Instruction manual: 1 PC
• Warranty card: 1 PC
• Certificate: 1 PC
• Power cord: 1 PC
• Serial cable: 1 PC
• Rack ear: 1 Pair
